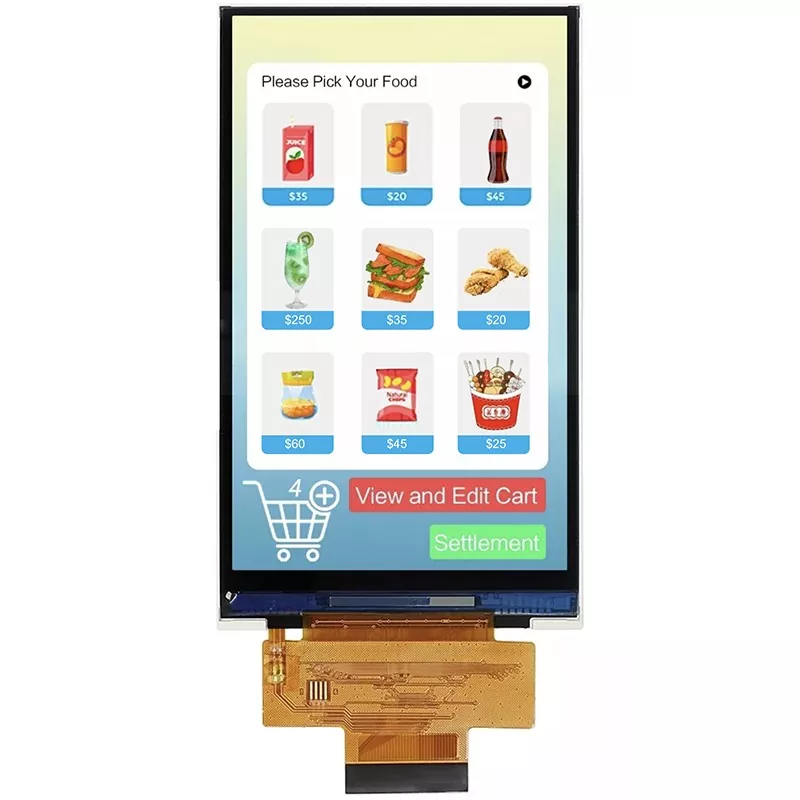

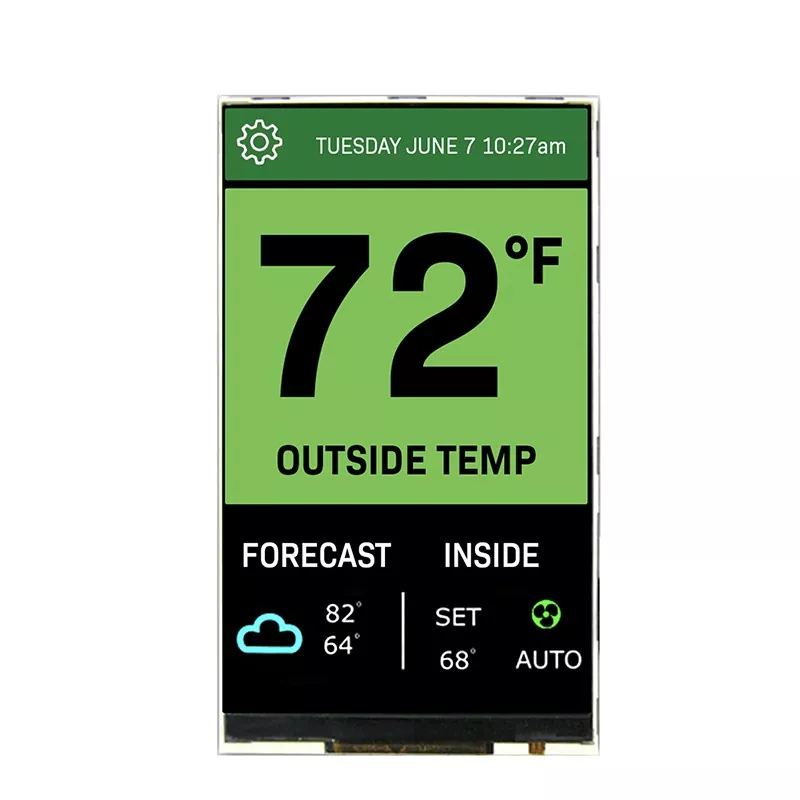

4,3 palčni 480x800 Portret IPS TFT modul

TFT Module is becoming more and more common in our lives. As a manufacturer and supplier of LCD in China, what are the advantages of this Victronix 4.3 inch 480x800 portrait IPS TFT Module? At first, its wide viewing angle of 80° (H) / 80° (V) and its high contrast ratio of 500:1 make it more suitable for harsh industrial. Secondly, it has a high brightness of 350 cd/m² and a white LED backlight system with a 50,000-hour lifespan (to 50% initial brightness), ensuring that it can be used for clarity and hours of use in different lighting situations. Besides, it complies with key IEC/GB standards for reliability including high/low-temperature operation/storage, humidity, thermal shock, vibration, mechanical shock, and ESD protection (±8kV Air, ±4kV Contact) to operate seamlessly across an extended temperature range (-20°C to +70°C). In addition, it integrates the HX8369A driver IC and supports 24-bit RGB interfaces (VSYNC/HSYNC/DE/PCLK).

This Victronix 4.3 inch TFT Module is widely used in HMI, medical devices, portable instrumentation, in-vehicle Secondary Displays, and IoT & Embedded Systems.

General Specifications

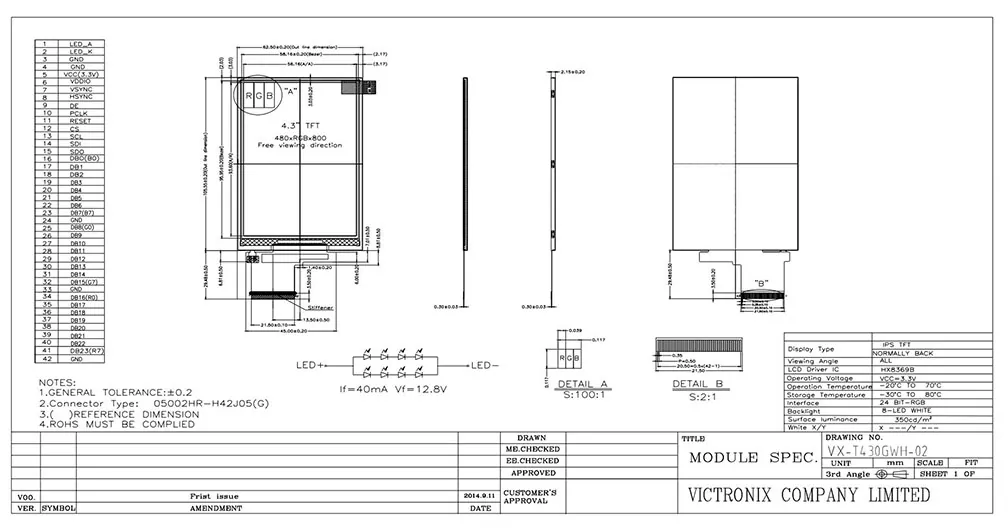

Outline Drawing
