5 palčni modul IPS TFT 720x1280

VXT500BKKI-01F je modul, ki ga je mogoče berljiv s sončno svetlobo z vsem gledanjem in širokim delovnim temperaturo. 5 -palčni zaslon 720x1280 IPS TFT modula je sposoben globokih črncev in živih barv. IPS tehnologija omogoča popolne kote gledanja.

Model:VXT500BKI-01F

Pošlji povpraševanje PDF prenos

Opis izdelka

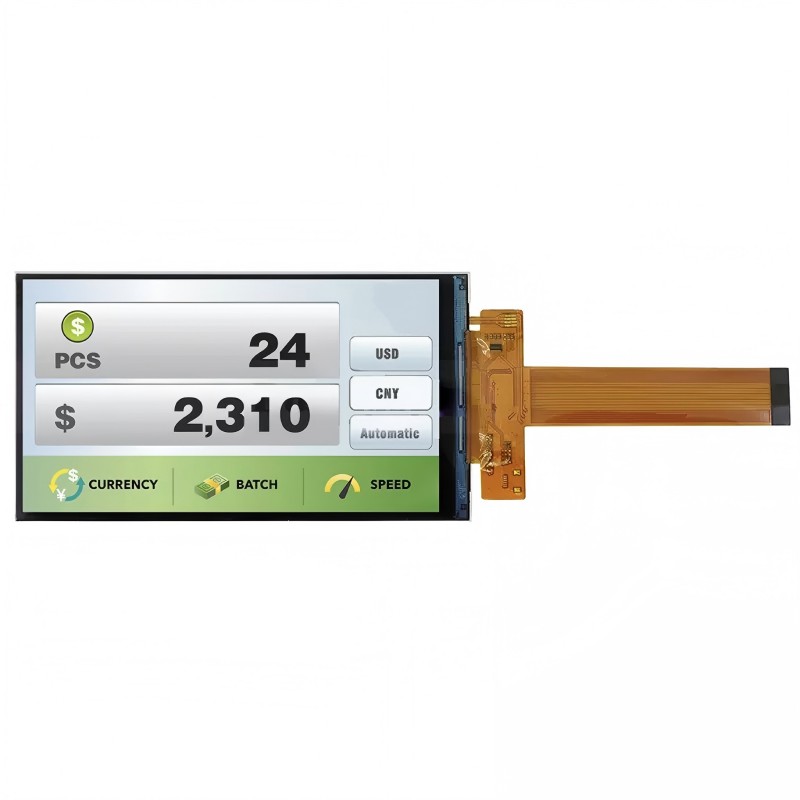

VXT500BKI-01F is a 5 inch IPS TFT portrait LCD display with the resolution of 720x1280 pixels. The display has a high contrast ratio of 800:1 making it capable of rendering deep blacks and vibrant colors. The IPS technology allows full viewing angle.

VXT500BKI-01F 5 inch 720x1280 IPS TFT Module is built-in ILI9881C controller, MIPI interface are used to communicate data to the display.

This 5inch LCD module comes with optional capacitive touch screen allowing users to interface with the display through touch and multi-touch input with bare fingers and with optional FPC connector.

That is suitable for a wide range of applications, including industrial control systems, home automation and portable electronics.

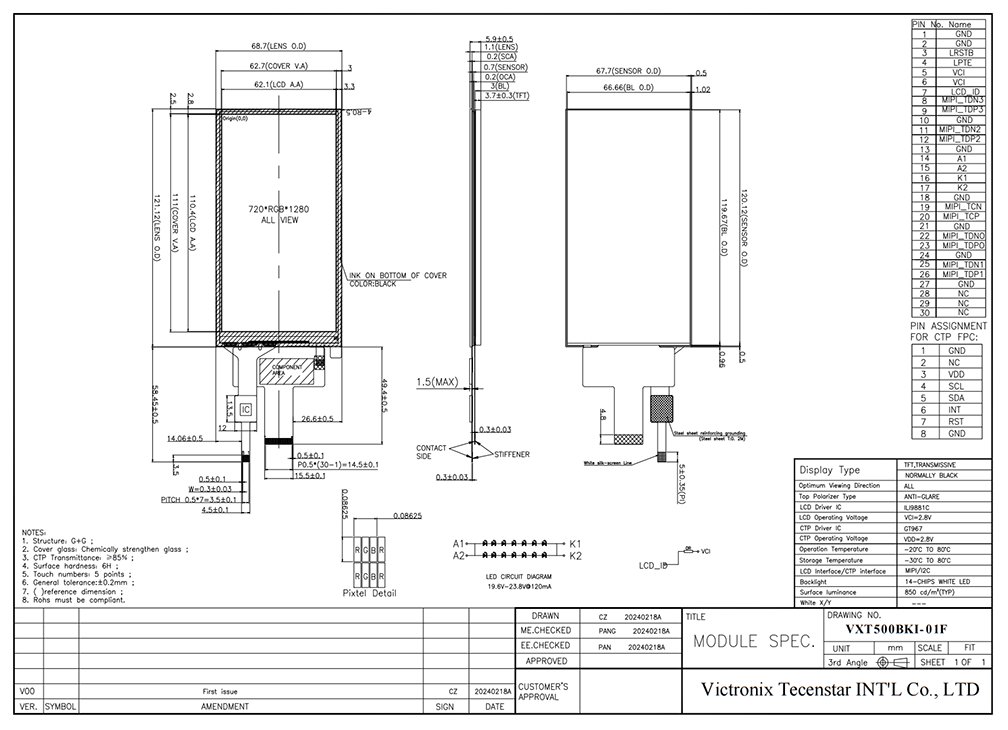

General Specification

Item	Contents	Unit
LCD TYPE	TFT/TRANSMISSIVE
MODULE SIZE (WHT)	68.7121.125.9	MM
ACTIVE SIZE(W*H)	62.1*110.4	MM
PIXEL PITCH(W*H)	0.08625*0.08625	MM
NUMBER OF DOTS	720*1280
LCD DRIVER IC	ILI881C
INTERFACETYPE	MIPI
TOP POLARIZER TYPE	ANTI-GLARE
RECOMMEND VIEWING DIRECTION	ALL	O'CLOCK
GRAY SCALEINVERSION DIRECTION	-	O'CLOCK
BACKLIGHT TYPE	14-DIES WHITE LED
TOUCH PANEL TYPE	CAPACTIVE
